Extreme Joy Specs-

Mid-size Tower

Color: white -blue trim

Supports up to 4 internal Media Devices (CD-DVD etc)

Supports 2 internal floppy or zip drives

Supports AMD  Joy/Duron/T-Bird 500Mhz~XP CPUs

-Support 200/266 MHz Front Side Bus

XP2000 Processor- 256MB SDRAMM - 40Gb Hard Drive - 256-bit 3D Graphics Accelerator/TV out - Integrated Digital Audio- 56k high speed internet modem - CD/Writer & DVD ROM -Burns VCD's  Floppy drive- Keyboard- mouse - speakers - Over $500  in free software - Free internet for Life- Your own free Web Site! 2 year Joy Warranty at no extra charge.





Offers an incredible /performance ratio
Offers the best value for your money
Awarded Editor's Choice Prize
Is truly an awesome Computer!
Is highly recommended!
A well-rounded feature set and rock-solid
stability
Is a terrific choice for anyone who plans to
move to a DDR platform

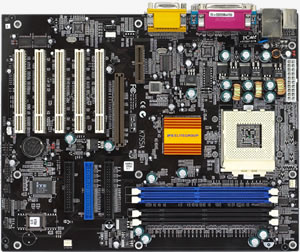

K7S5A Ver. 1.1











PROCESSORS
462 pin Socket A supports the AMD® Athlon K7 processors
Full series of Athlon/Duron CPU including the future Athlon processors
CHIPSET
SiS® 735 System Chipset
Super I/O and LPC - ITE8705F
System Hardware Monitor: Built-in ITE8705
LAN: MAC integrated in SiS®735 & PHY on board
AC97 Audio Codec
SYSTEM BIOS
2 DDR DIMM sockets and 2 DIMM sockets support (can not be used simultaneously)
Two 184-pin DDR SDRAM (DDR200, DDR266) or
Two 168-pin 3.3V SDRAM (PC100, PC133)
Maximum: 1.0GB (DDR or SDRAM)
MEMORY
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
I/O INTERFACE
Supports Plug and Play function
PS/2 keyboard and PS/2 mouse connectors
Dual USB Ports and LAN connectors
One - EPP/ECP mode parallel port
Two - 16550 high-speed serial I/O ports
Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)
Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)
Supports 360K~2.88M Byte, 3 Mode FDDs or LS120
ATX Power Supply Connector
ports, Headers and Others:
IrDA Cable header
Extra USB header
Two CD-In headers
Front Panel MIC/Line-out header
HDD LED, ACPI MSG LED, Reset Switch, Power Switch headers
CPU and Case Fan headers
Modem Ring Wake Up Header
RTC & BATTERY
SiS®® 735 included 256 bytes of CMOS SRAM
With CMOS SRAM hardware clear jumper
EXPANSION SLOTS
5 PCI slots, 1 4X AGP slot, 1 AMR slot
FORM FACTOR
ATX (304mm*244mm), 4 Layers

Built-in SiS315 AGP 4X 256-bit 3D Graphics Accelerator AGP 4X Controller Supports AGP 2.0 compliant configuration setting Supports AGP 4X 266MHz with maximum 16 stages pipeline full side band function Supports 1.5V AGP 4X slot interface High Performance 256-bit 3D Graphics Engine Built-in 32-bit floating point VLIW Geometry Transform/Lighting(T/L) and Triangle setup engine Built-in hardware stereo auto rendering engine Supports AGP 4X 266MHz for texture fetch Up to 166MHz 3D engine/memory clock High quality 3D engine, supports flat, shading, lighting, dithering, rendering, .... High Performance 2D Accelerator Built-in Hardware Command Queue to achieve extra-high performance Built-in Direct Draw accelerator Built-in GDI 2000 accelerator Built-in an 1T 128-bit BITBLT graphics engine Supports memory-mapped, zero wait-state, burst engine write Supports burst frame buffer read/write for memory Supports AGP 4X 266MHz data read for all 2D engine function High Performance DVD Motion Compensation Decoder and Video Accelerator MPEG-2 ISO/IEC 13818-2 MP@ML and MPEG-1 ISO/IEC 11172-2 standards compliant Built-in motion compensation logic Supports up to 20Mbit/sec bit rate decoding Direct DVD to TV playback Two video playback line buffers to support MPEG II and 1920x1080 video playback Built-in independent Gamma correction RAM Supports single video windows with overlay function Supports tearing free double/triple buffer flipping Complete TV-Out Solution, SiS301 on board (AG315T-64 only) Built-in complete NTSC/PAL video encoder Supports NTSC/PAL interlaced display by dependent/independent frame rate Supports Hue saturation programming for chroma signals Supports Brightness programming for lumiance signals Supports Composite Video and S-Video TV-Out 24-bit true-color RAMDAC, 375MHz pixel clock, resolution up to 2048x1536 64k colors 75Hz NI On board 64MB, up to 128M(optional) SDRAM Supports VESA DPMS compliant VGA monitor for power management WHQL certification, drivers support Windows98/ME/NT/2000, DX8 compatible FCC, CE BSMI EMI Certification



To get complete solution, contact your sales rep
